Ladder Type Cable Trays

You are here : Home | Ladder Type Cable Trays

Ladder Type Cable Trays

request-quote

W(mm) T(mm) H(mm)
150 2/2.5 50/75
200 2/2.5 50/75
300 2/2.5 50/75
400 2/2.5 50/75
600 2/2.5 50/75/100
750 2/2.5 50/75/100
900 2.5/3 50/75/100

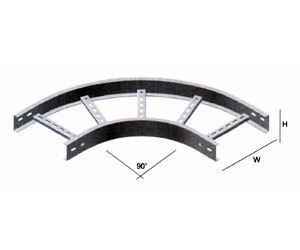

Horizontal 90o Elbow

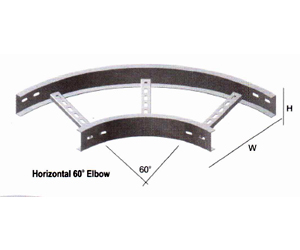

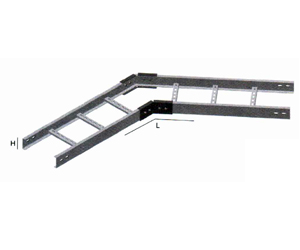

Horizontal 60o Elbow

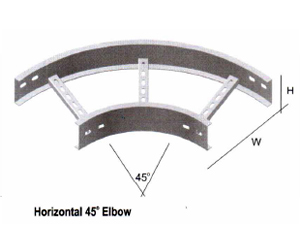

Horizontal 45o Elbow

Horizontal 90o, 60o, 45o Elbow

W(mm) T(mm)
150 2/2.5
200 2/2.5
300 2/2.5
400 2/2.5
600 2/2.5
750 2/2.5
900 2.5/3

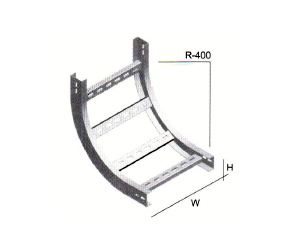

Vertical Riser (Internal)

Vertical Riser (External)

W(mm) T(mm)
150 2/2.5
200
2/2.5
300 2/2.5
400 2/2.5
600 2/2.5
750 2/2.5
900 2.5/3
Vertical Riser (External)

Vertical Riser (External)

W(mm) T(mm)
150 2/2.5
200
2/2.5
300 2/2.5
400 2/2.5
600 2/2.5
750 2/2.5
900 2.5/3

ladder-type-cable-trays-and-its-accessories5

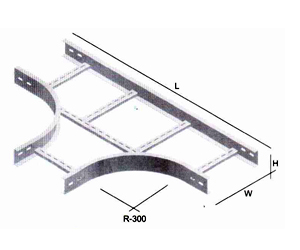

Horizontal Tee

W(mm) T(mm) L(mm)
150 2/2.5 1050
200
2/2.5 1100
300 2/2.5 1200
400 2/2.5 1300
600 2/2.5 1500
750 2/2.5 1650
900 2.5/3 1800

ladder-type-cable-trays-and-its-accessories6

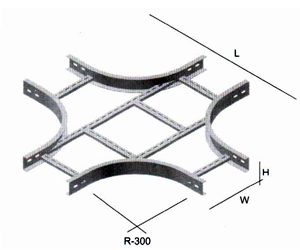

Horizontal Cross

W(mm) T(mm) L(mm)
150 2/2.5 1050
200
2/2.5 1100
300 2/2.5 1200
400 2/2.5 1250
600 2/2.5 1500
750 2/2.5 1650
900 2.5/3 1800

ladder-type-cable-trays-and-its-accessories7

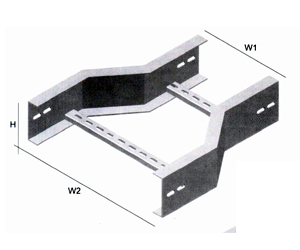

ladder-type-cable-trays-and-its-accessories8
ladder-type-cable-trays-and-its-accessories9

Straight Reducer

W1(mm) W2(mm) T(mm)
150 200 2/2.5
200 300 2/2.5
300 400 2/2.5
400 450 2/2.5
600 500 2/2.5
750 600 2/2.5
800 700 2/2.5

ladder-type-cable-trays-and-its-accessories10

Horizontal Adjustable Splice Plate

H(mm) L(mm)
52/77/102 270

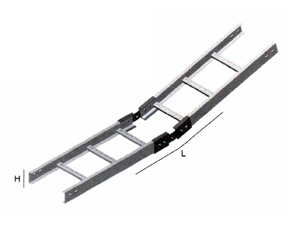

ladder-type-cable-trays-and-its-accessories11

Vertical Adjustable Splice Plate

H(mm) L(mm)
52/77/102 400

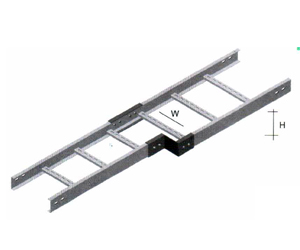

ladder-type-cable-trays-and-its-accessories12

Horizontal Adjustable Splice Plate

H(mm) L(mm)
52/77/102 100
52/77/102 200
52/77/102 300
ladder-type-cable-trays-and-its-accessories13

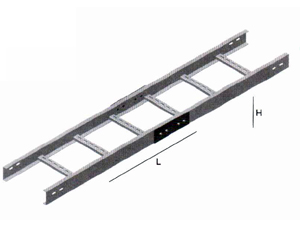

Reducer plate

H(mm) L(mm)
20/45/80 200/210

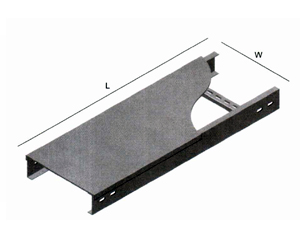

Cover

Cover

W(mm) H(mm) T(mm)
53 10 1.2/1.6
78
10 1.2/1.6
104 10 1.2/1.6
154 10 1.2/1.6
204 10 1.6/2
304 10 1.6/2
404 10 1.6/2
504 10 1.6/2
604 10 1.6/2

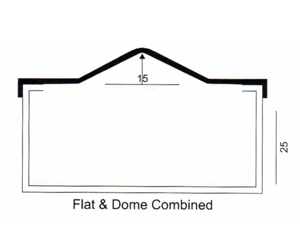

Flat & Dome Combined

Flat & Dome Combined

W(mm) H(mm) T(mm)
53 15 1.2/1.6
78
15 1.2/1.6
104 15 1.2/1.6
154 15 1.2/1.6
204 15 1.6/2
304 15 1.6/2
404 15 1.6/2
504 15 1.6/2
604 15 1.6/2

ladder-type-cable-trays-and-its-accessories16

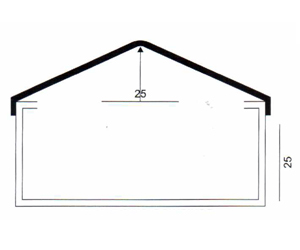

Dome Type

W(mm) H(mm) T(mm)
53 25 1.2/1.6
78
25 1.2/1.6
104 25 1.2/1.6
154 25 1.2/1.6
204 25 1.6/2
304 25 1.6/2
404 25 1.6/2
504 25 1.6/2
604 25 1.6/2

ladder-type-cable-trays-and-its-accessories17

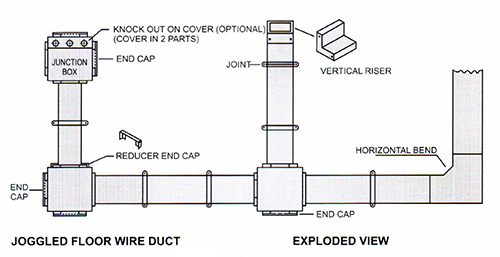

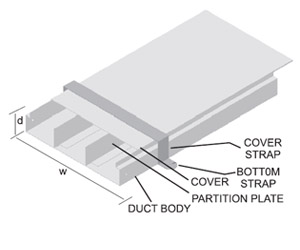

Joggled Floor Wire Duct

W(mm) H(mm) T(mm)
50 25/50/75/100/150 1.6/2
75
25/50/75/100/150 1.6/2
100 25/50/75/100/150 1.6/2
150 25/50/75/100/150 1.6/2
200 25/50/75/100/150 1.6/2
300 25/50/75/100/150 1.6/2
400 25/50/75/100/150 1.6/2
500 25/50/75/100/150 1.6/2
600 25/50/75/100/150 1.6/2

Vertical Riser (Internal)

Vertical Riser (External)

MATERIALS FINISH
MILD STEEL - HR IS 1079 *POWDER COATED
MILD STEEL - CR IS 513 *POWDER COATED
PREGALVANISED IS 277 SELF FINISH
ALUMINIUM IS 737 SELF FINISH /
*POWDER COATED SELF FINISH
STAINLESS STEEL (SS 304) SELF FINISH
Vertical Riser (External)

Vertical Riser (External)

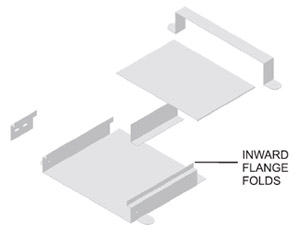

Also Available Inward Flanges Type Ref Separate Drgs.
Std. Depth : 25, 35, 50 mm
Std. Length : Generally 2.5 mtrs.
Other Std. Lenght As Per Mutual Agreement
*Clour : Siemens Grey, Black, Deep Orange, White


request-quote


Standard Length In Standard length of 2.5 mtrs (2500 mm)
Width 50 mm, 100 mm, 150 mm, 200 mm, 300 mm, 450 mm, upto 1000 mm
Thickness 1.6 mm to 3 mm
Height 50 mm, 100 mm, 125 mm, 150 mm
Materials Mild Steel Aluminum, Stainless Steel conforming to IS
Finish Hot Dip Galvanized, Red-oxide, Enamel painted, Special Paint, Powder Coating, Self-colored

Ladder Type Cable Tray are used to distribute cable and has been designed carefully keeping in mind industrial requirements. These trays are manufactured using top quality material and are available in various sizes. We can offer customized solution for all the products


Strength : Light, Medium & Heavy Duty

These cable trays also available as Welded Type with high grade galvanized sheet and other materials such as painted and powder coated finish on mild steel.
Ladder cable tray offer high strength as per specification which made them perfect for heavy-duty power distribution in industries, manufactured using pre-galvanized mild steel. These Ladders are available in width ranging from 150mm to 1200 mm and height ranging from 50 mm to 150 mm. Available in standards length of 2500 mm.


Types Ladder Type Cable Tray (Welded)
Strength Light, Medium & Heavy Duty
Raw Material MS, SS, Aluminum
Width 150 mm - 2000 mm
Height 40 mm - 150 mm
Thickness 1.2 mm –3.0 mm
Lengthl 1000 mm - 3000 mm
Finish Self-Finish, Pre-Galvanised, Hot Dip Galvanising as per IS 2629/4759, BS 729, ASTM 123, Painted (Red oxide, Painted & Powder Coated)
