Standard Specifications

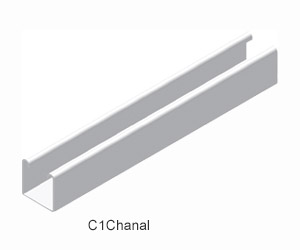

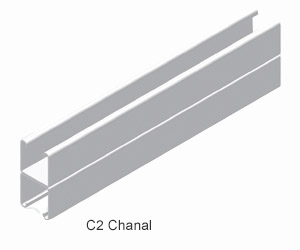

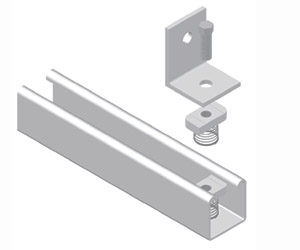

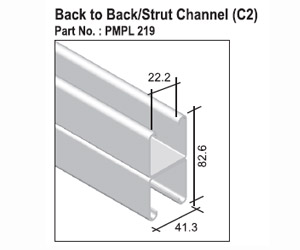

Our Channel Sections are available in 3 metre or 6 metre lengths as standard.
Channels are manufactured from mild Steel hot-dipped galvanized or other finishes.
Channels are produced from steel strip with a nominal thickness of 2.5mm.
The weight of the channel is 3kg/m.


1. Framing Members
Channels are accurately and carefully cold formed to size from low carbon strip steel. The channel has a continous slot with inturned clamping ridges.

2. Fittings
The fittings, unless noted otherwise, are punch press formed from low carbon steel plates or strip.


3. Spring Nuts
Produced from steel bars and after manufacturing, are case-hardened. Two serrated grooves in the top of the nut engage the inturned edges of the channel.


4. Masses and Dimensions
Masses given for all materials are approximate shipping weight. All Dimensions subject to commercials tolerance variations.


5. Finishes
Plain channel - has oiled surface straight off rolling mill.
Fittings - commercial bar stock material.
Hot-dipped galvanised - coatings are applied in accordance to Bs 729 / IS - 2629.
Special coating - Other commercially availabe finishes can be supplied on request.

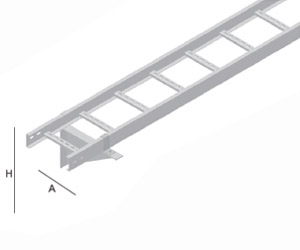

Support Bracket

Support Bracket

Width of Application Tray(mm) Thickness(mm) A(mm) H(mm)
200 2.3 300 125
300 2.3 400 125
400 3.0 500 150
600 3.0 700 150
700 3.0 800 150

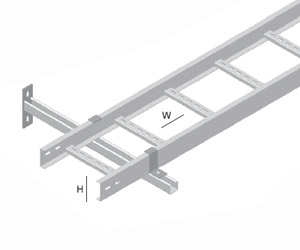

Hold Down Clamp

Hold Down Clamp

H (mm) W (mm)
27/52/77/102 45

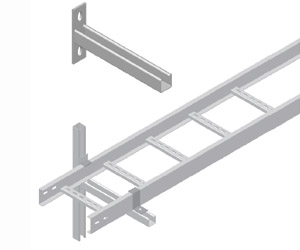

Cantilever Bracket

Cantilever Bracket

L (mm) Width of Application Ladder (mm)
300 150
350 200
450 300
600 400
750 600
900 750
1050 900

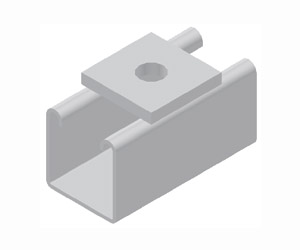

Square Washer

Square Washer

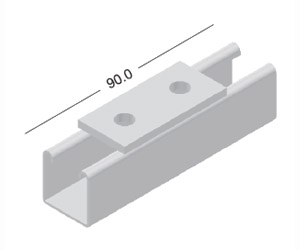

Two Hole Plate

Two Hole Plate

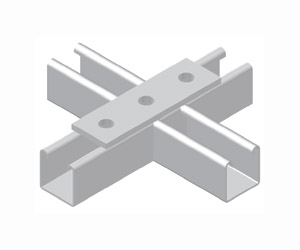

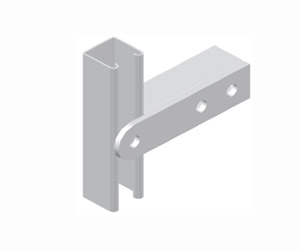

Three Hole Plate

Three Hole Plate

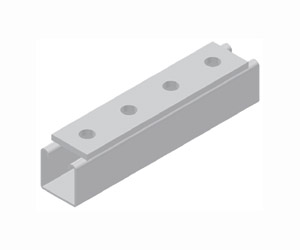

Four Hole Plate

Four Hole Plate

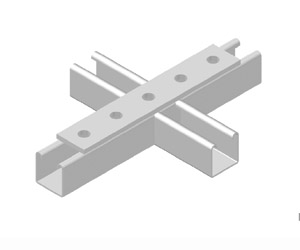

Five Hole Plate

Five Hole Plate

Three Hole Plate

Three Hole Plate

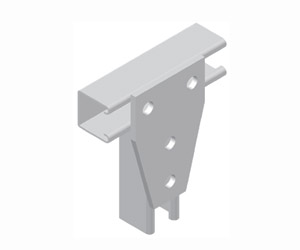

Fisher Plate Joiner

Fisher Plate Joiner

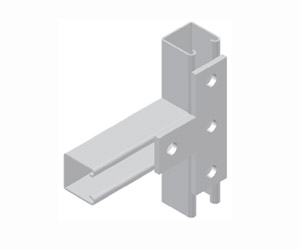

T Bracket

T Bracket

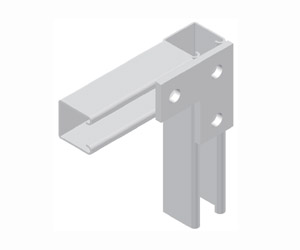

L Bracket

L Bracket

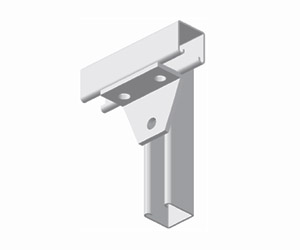

Right angle Bracket

Right angle Bracket

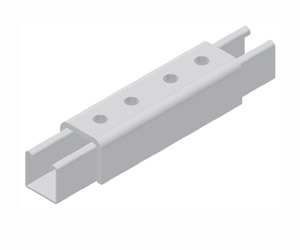

Deep External Connector

Deep External Connector

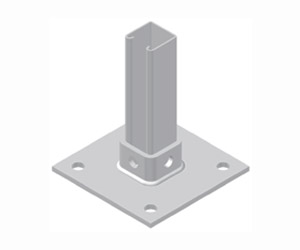

Base Plate (Single channel)

Base Plate (Single channel)

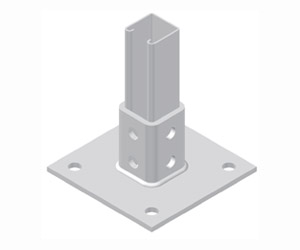

Heavy Base Plate (Single Channel)

Heavy Base Plate (Single Channel)

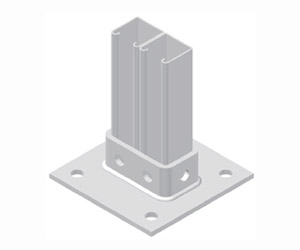

Base Plate (Double channel)

Base Plate (Double channel)

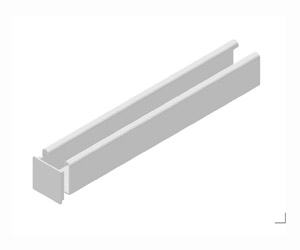

End Caps

End Caps

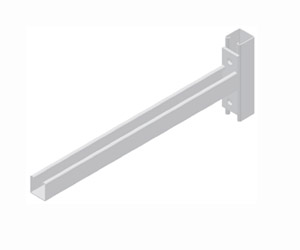

Cantilever Single Channel

Cantilever Single Channel

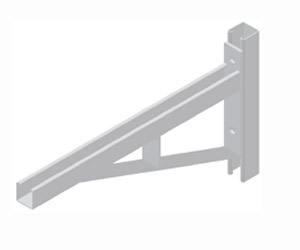

Cantilever Arm Prop

Cantilever Arm Prop

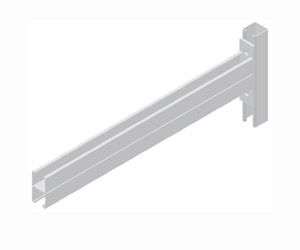

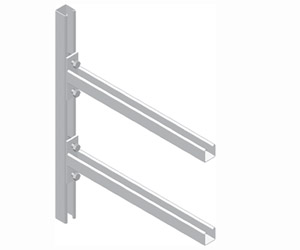

Centilever double Channel

Centilever double Channel

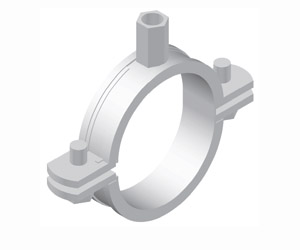

Adjustable Pipe Clamp

Adjustable Pipe Clamp

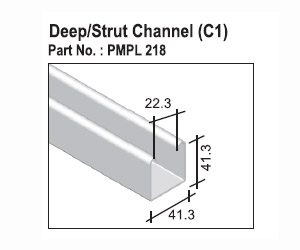

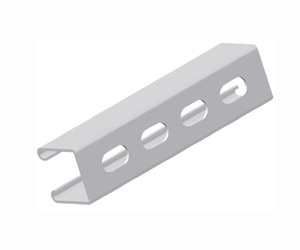

Deep Slotted Channel

Deep Slotted Channel


Channel Nut long Spring

Channel Nut long Spring

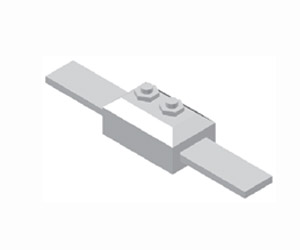

Oblong

Oblong

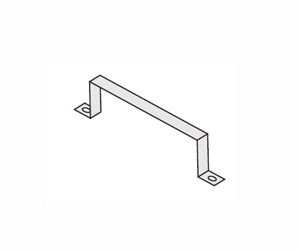

Cover Clamp

Cover Clamp

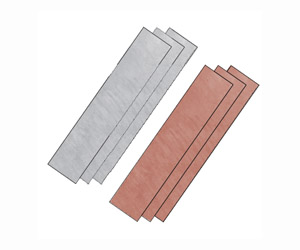

GI / Copper Earthing Flat

GI / Copper Earthing Flat

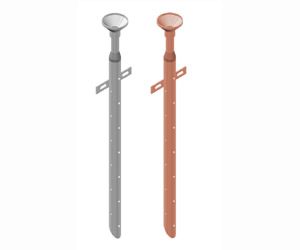

GI / Copper & Chemical Earthing Pipe

GI / Copper & Chemical Earthing Pipe

GI / Copper Earthing Round Bar

GI / Copper Earthing Round Bar
